LEVELFIX DUAL SLOPE LASER 860HVS
Digital dual slope laser

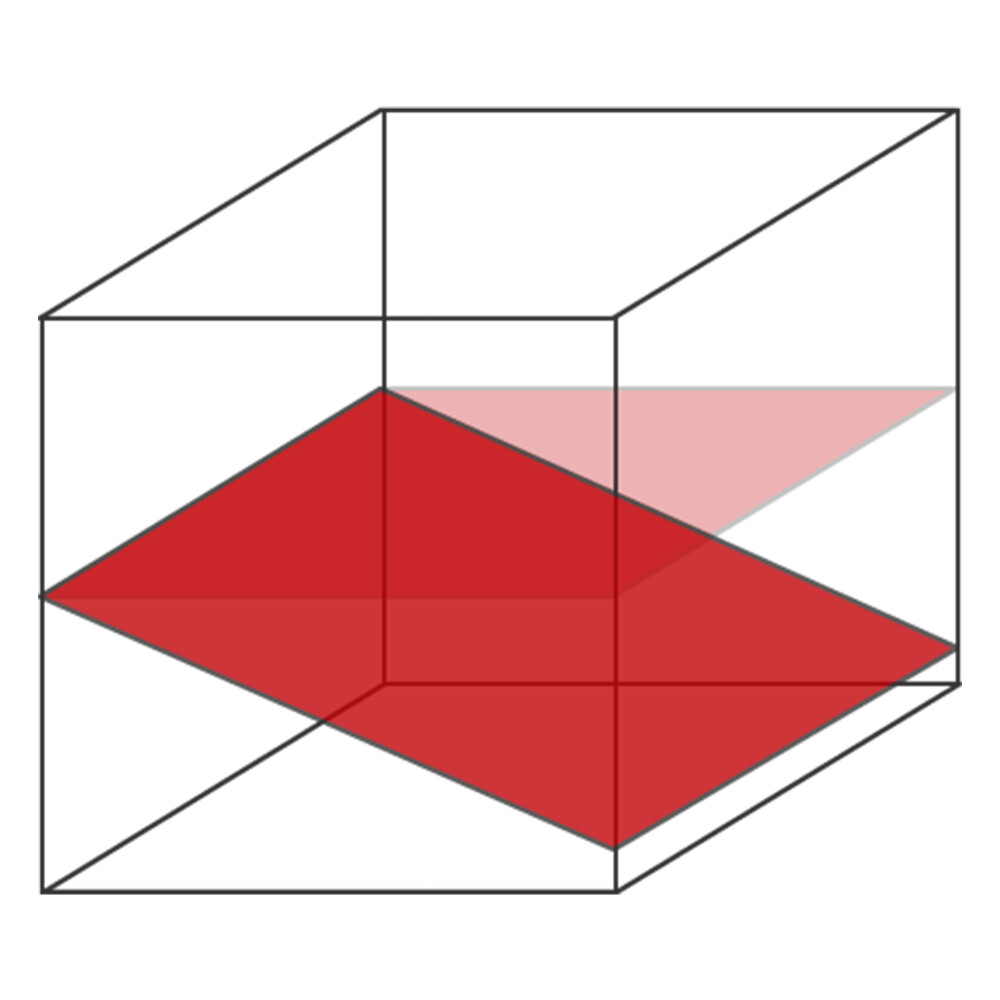

Levelfix 860HVS dual slope laser has a clear digital display that makes it easy to set slope values on both axes. SmartSlope technology keeps one axis level while the other is tilted and tracks temperature changes. The laser has an Auto-Alignment function that automatically aligns the laser beam to the center point of the receiver.
Article number: 110602
- Description
- Features
- Technical specifications
- Documents
- Related products
Description

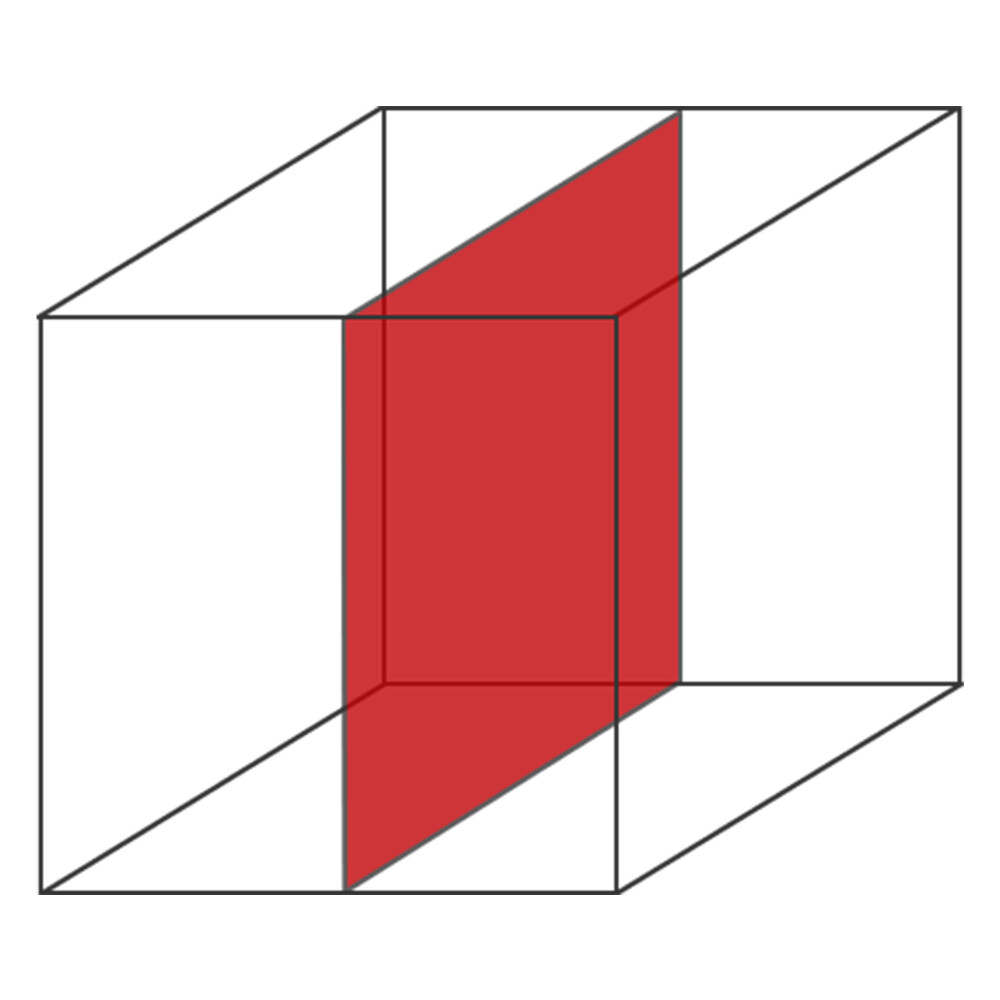

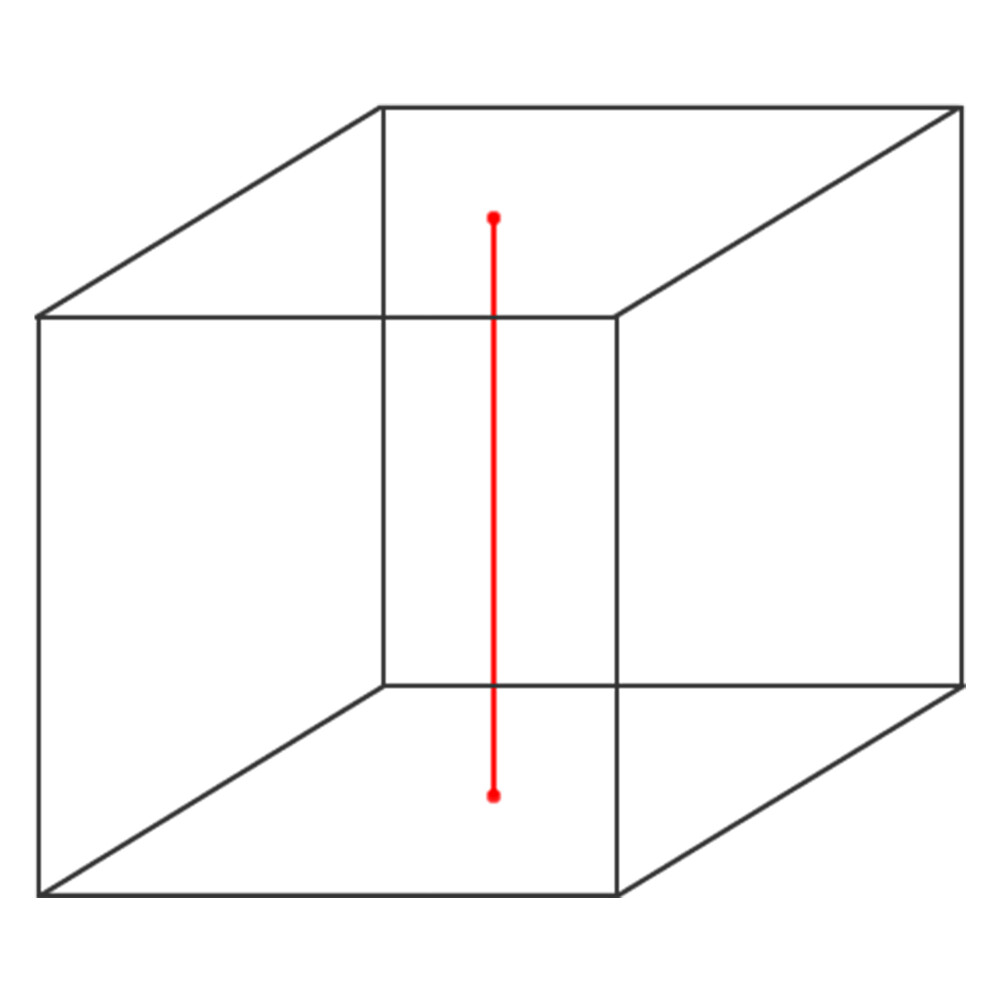

The 860HVS laser can also be used in vertical mode. It projects a plumb beam downward for precise positioning. Auto-alignment works in vertical mode up to 100 meters, making alignment easy. The vertical line can be finely adjusted using the remote control. The device is ideal for facade construction, window installation, general construction work, and foundation layout. The laser includes an SLD800 millimeter receiver that shows direction and distance to center in millimeters. It features a backlit dual LCD display with adjustable accuracy and sound. With auto tracking, the laser automatically follows the receiver. The BLE5 Bluetooth remote control works up to 100 meters. The laser has three rotation speeds: 300, 600, and 1200 rpm and a range of up to 1100 meters. Side beam masking helps avoid reflections. Battery runtime is up to 50 hours and it can be charged during use. Levelfix Connect app allows full mobile control and access to settings and manuals.
Technical specifications
Operating range with receiver:
1100
Accuracy per 10 m:
0.48
Battery type:
Li ion
Operating time:
50
IP protection class:
IP67
Receiver function:
Beam color:
Red
Product weight:
9
Warranty period:
84
Operating range:
1100
Laser category:
2
Power source:
Battery / AC
